KT7 Integrated open hole drill

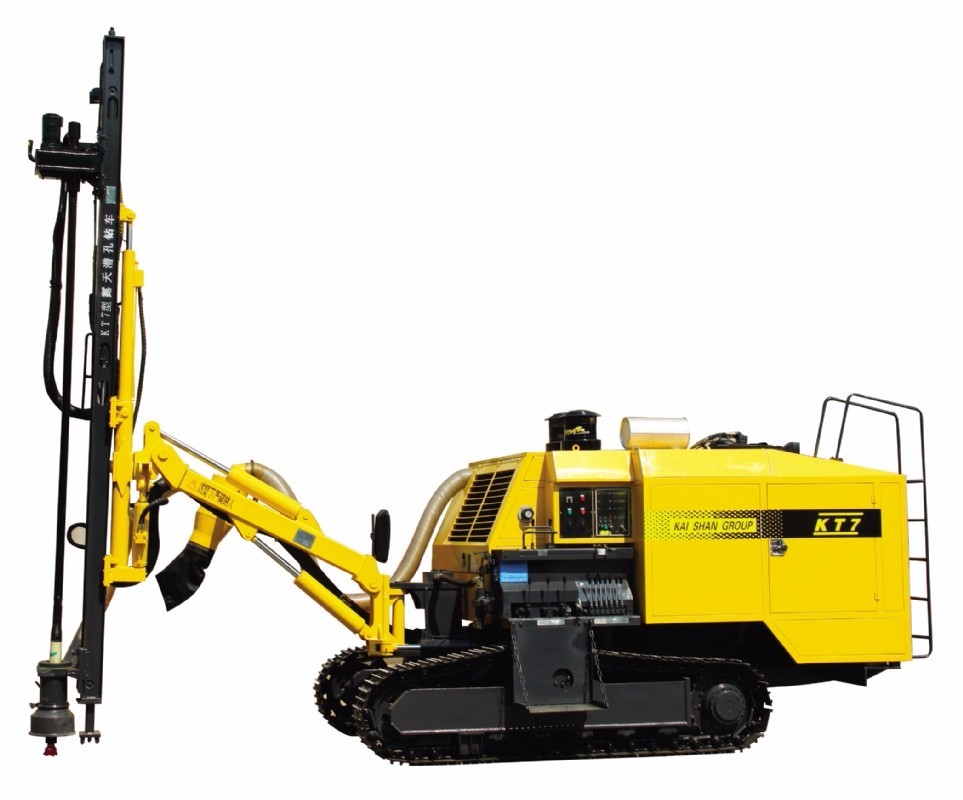

"Kaishan" brand KT7 integral high-pressure open-air DTH drilling rig is an advanced drilling equipment which combines DTH drilling system with screw air compression system.
KT7 Integrated open hole drill：
"Kaishan" brand KT7 integral high-pressure open-air DTH drilling rig is an advanced drilling equipment which combines DTH drilling system with screw air compression system. It uses a six-cylinder diesel engine to provide power for the two systems, with compact structure, good integrity and easy movement. The single-stage compressed high-pressure screw head equipped with core knowledge products of the drilling rig is equipped with the internationally leading Torres Y-line, which has a large flow rate (13m/min) and a high pressure (1.7MPa), providing strong power for the high-pressure pneumatic impactor. The rock drilling speed is 20% - 50% higher than that of the stroke drilling rig.
"Kaishan" brand KT7 integral high wind pressure open-pit DTH drill is mainly used for rock drilling in stone works and open-pit mines.
KT7 Basic parameters | |||
Rock drilling hardness | f=6-20 | Rotary torque(N*m) | 1900 |
Borehole diameter(mm) | 90-105 | Maximum pull force(N) | 25000 |
Economic hole depth | 30 | Lifting angle of carriage | 向上28° 向下42° |
Walking speed(Km/h) | 0-2.5 | Pitching angle of carriage | 129° |
Climbing ability | 30° | Slide angle | 向右38° 向左35° |
Ground clearance(mm) | 380 | Lateral horizontal pendulum angle of carriage | 向右4° ~89° |
The rated power(Kw) | 180 | Drill arm swing angle | 向右39° 向左60° |
Diesel engine | YC6A | Leveling angle of frame | 向上10° 向下9° |
Displacement of screw machinem3/min) | 13 | Advance length(mm) | 3000 |
Screw machine exhaust pressure(Mpa) | 1.7 | Compensation length(mm) | 900 |
Shape size(mm) | 8000×2260×2800 | Impactor | KQG35A(選配HD45S) |
Weight(Kg) | 9500 | Drill pipe | Φ64×3000mm |
Speed of gyration(r/min) | 0-120 | Dust catching mode | Laminar flow of hydraulic cyclone |
