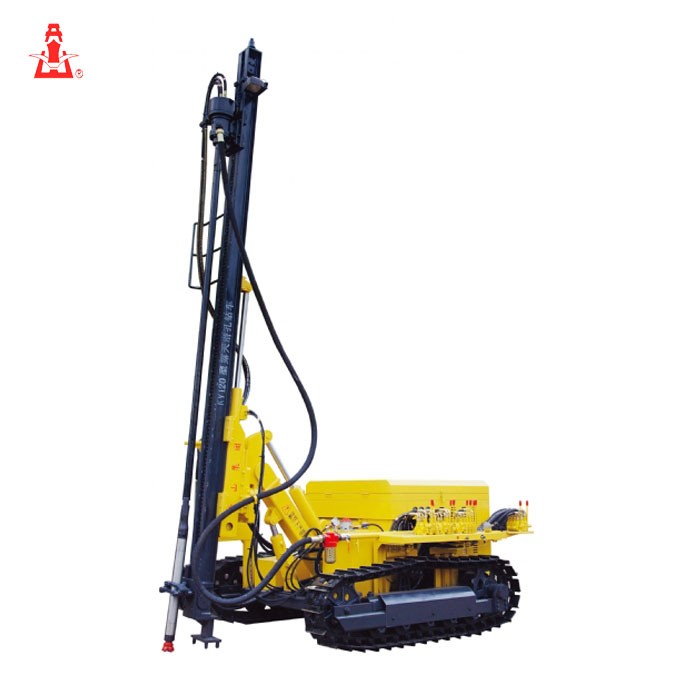

Portable Drill Rig For Water Wells/CrawlerType Sand KY120

Portable Drill Rig For Water Wells/CrawlerType Sand KY120

OverviewQuick DetailsCondition:NewType:Rotary Drilling RigPower Type:DieselPlace of Origin:Zhejiang, ChinaBrand Name:KaiShanModel Number:KY120Usage:CoalVoltage:220V/380VPower:33Dimension(L*W*H):5100x2

Detailed information

Overview

Quick Details

Condition:
New

Type:
Rotary Drilling Rig

Power Type:
Diesel

Place of Origin:
Zhejiang, China

Brand Name:
KaiShan

Model Number:
KY120

Usage:
Coal

Voltage:
220V/380V

Power:
33

Dimension(L*W*H):
5100x2030x2020

Weight:
3300

Warranty:
1 Year

After-sales Service Provided:
Overseas third-party support available

Certification:
ISO9001

Weight(KG):
3300

Power Type::
Diesel

Model Number::
KY120, KY120

Brand Name::
Kaishan

Certification::
CE/ISO/GC

Dia of hole::
80-115 MM

Power::
Power: 58kw

Warranty::
1 Year

Dimension(L*W*H)::
5100x2030x2020mm

Condition::
New

Supply Ability

Supply Ability
200 Set/Sets per Month

Packaging & Delivery

Packaging Details

Portable Drill Rig For Water Wells/CrawlerType Sand KY120
nude package, also according to your request

Port

ShangHai or NingBo port

Lead Time:
Quantity(sets) 1 - 1 >1
Est. Time(days) 10 To be negotiated

Portable Drill Rig For Water Wells/CrawlerType Sand KY120

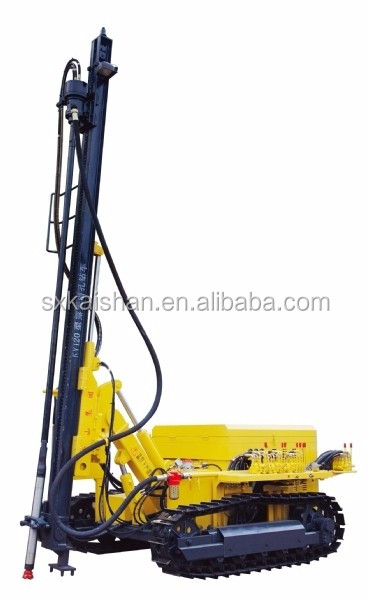

Kaishan high efficiency KY120 Quarry Mining blasting drilling rigs equipment

1.Drill Depth :18-40m

2.Drill Diameter : 76-165mm

Moving type : crawler mounted

Power type : hydraulic-pneumatic type , pneumatic type,

A. Powerful feeding mechanism and rotating system
1. Rotating system driven by high power hydraulic motor provides strong torque reserve and reduces the sticking drilling probability.
2. Feeding mechanism driven by high power hydraulic mot or can generate 20KN lifting power. Adjusting the pressure regulating valve on the control valve can get favorable driving power required by the working condition.

B. Adjustable boom
Boom is adjustable. The angle of drilling hole and height of horizontal hole can be adjusted by controlling the stretch-out and draw-back of the hydro-cylinder.

C. Reliable Hydraulic Pump System

1. Oil supplied by two independent gear pumps, reliable operation, strong adaptability, easy maintenance. 2. Adopt gear transmission and soft connection, possessing compact structure and stable operation.
3. Adopt special hydraulic components. That improves the system’s stability and reliability.
4. Install oil liquid cooling device, to eliminate the exothermic hydraulic oil’s influence to the system.

D. Centralized Operating System

1. Designed with advanced hydraulic system and functional gas supply system, all actions can be centralized controlled, easy to operate.

2. Running the hydraulic operating valve can lift or swing the boom, and adjust the pitching, swing angle and forward or backward moving of drilling rig, and also level the crawler.

3. Running the pneumatic operating valve can open the oil pump, and realize the crawler drilling rig’s function of lifting, rotating and impacting, to ensure the high efficiency rock drilling.

Rigidity rock	F=6-20
Diameter of hole	80-115mm
Optium drilling depth	25m
Working pressure	10-14bar
Air consumption	≥13m3/min
Torque	1400 N .m
Rotation speed	0-65rpm
Lift power	17KN
Dimension(KY100)	510020302020mm
weight	3300 KG
Drive system	YC2108 Engine
Standard Components ( option)
1.hammer	KXD330,KXD335,KXD340
2.pipe	Φ602000mm, Φ603000mm
3.bit	Φ105(Φ90,Φ115)
4.air hose	Φ381P20

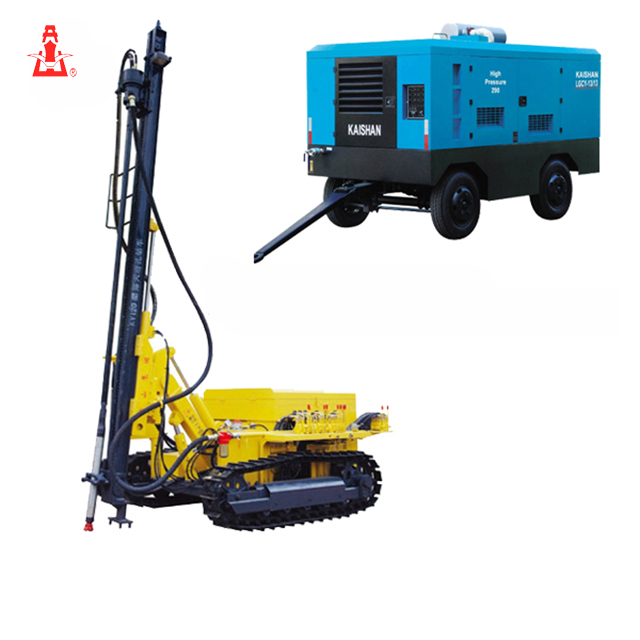

Auxiliary Power: KaiShan LGCY13/13 Diesel mobile screw air compressor

Model	Capacity (m3/min)	Working Pressure	Diesel Engine (kw)	Dimension (mm)
LGCY13/13	13	1.3	6BTA5.9-C180	4080×1980×2350
