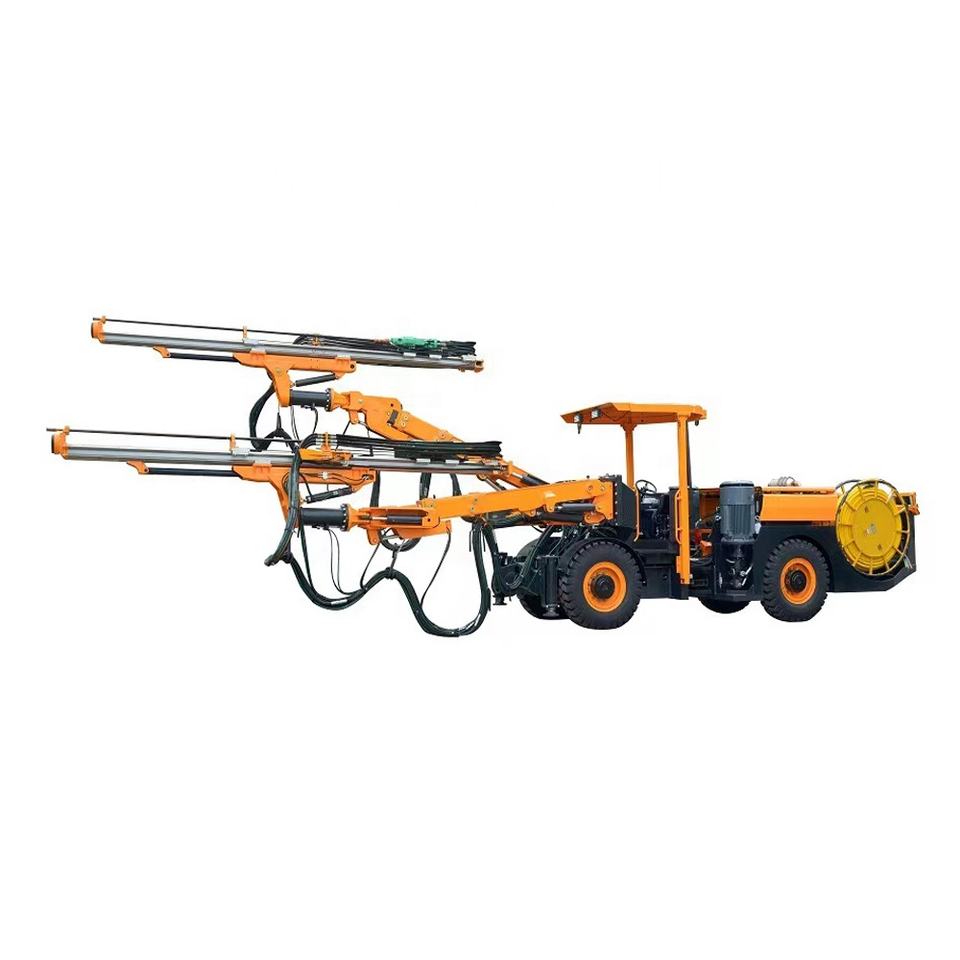

Kaishan KJ KJ421 Double boomer arm full hydraulic hard rock blasting drilling machine /tunnel drill jumbo

Kaishan KJ KJ421 Double boomer arm full hydraulic hard rock blasting drilling machine /tunnel drill jumbo

OverviewQuick DetailsApplicable Industries:Manufacturing PlantShowroom Location:United StatesCondition:NewType:Core Drilling RigPower Type:DieselPlace of Origin:Zhejiang, ChinaBrand Name:KaishanUsage:

Detailed information

Overview

Quick Details

Applicable Industries:
Manufacturing Plant

Showroom Location:
United States

Condition:
New

Type:
Core Drilling Rig

Power Type:
Diesel

Place of Origin:
Zhejiang, China

Brand Name:
Kaishan

Usage:
Tunneling Jumbo

Voltage:
0

Dimension(L*W*H):
13000*2200*2400mm

Weight:
22T

Warranty:
1 Year

Marketing Type:
Hot Product 2019

Machinery Test Report:
Provided

Video outgoing-inspection:
Provided

Warranty of core components:
2 years

Core Components:
Motor

Key Selling Points:
Flexible Manufacturing

Drilling Diameter:
75mm, 100mm

Drilling Depth:
Max.40m

Product name:
Tunneling Jumbo

Application:
Construction

Boom extension:
1800mm

Walking speed:
10KM/H

Power:
2*75 KW

Impact pressure:
180-200bar

Impact frequency:
54-62HZ

Feed extension:
1600 mm

DTH Hammer:
K40

Impact flow:
100-120L/min

Local Service Location:
United States

After-sales Service Provided:
Video technical support, Free spare parts

Certification:
ISO CE

Supply Ability

Supply Ability
2000 Set/Sets per Month

Packaging & Delivery

Packaging Details

delivery time: 15-20 days after the payment.
Package way: nude package or as requirements.
Shipment : By sea, air ,courier, railway etc

Port

shanghai

Lead Time:
Quantity(sets) 1 - 10 >10
Est. Time(days) 25 To be negotiated

00:03

00:44

Product Description

KJ421 Underground Mining Drill Rigs and Tunneling Jumbo to tunneling operation at the section of 16-68m2 in hard-rock mine. Its firm and reliable universal big boom has the best shape of section coverage, boosting the 360° overturn and automatic leveling of the beam for rapid and convenient borehole positioning. The big boom can also be used for lateral cross hole opening and anchor rod boring operations.
The arrangement of the jumbo ensures the good view of the operator. powerful 4-wheel drive hinge chassis ensures flexible, quick and safe driving in a narrow roadway.
The high-frequency percussion rock driller uses the cascaded piston to optimize the efficiency of shock wave transmission, raise the drilling speed, reduce clamping bit consumption and enhance the soundness of device.
The big space of operation and a series of automatic functions can help the driver to concentrate their attention to safe, rapid and accurate tunneling.
All its repair and maintenance parts have been protected well, and its repair and maintenance are easy.

Technical Parameters of KJ421 Underground Mining Drill Rigs and Tunneling Jumbo
Dimensions and Weight
Length	13000mm
Width	2200mm
Height	2400/3100 mm
Weight	22000 kg
Travelling speed, level	10 km/h
Climbing capacity	14°
Safe protection
Noise level	<100 dB(A)
Lifting safety ceiling	Meet the requirements of FOPS and ROPS.
Drilling system
Rock drilling	2×HC95LM
Impact power	21KW
Impact flow	100-120L/min
Impact pressure	180-200bar
Torque	764Nm
Beam ratation	360°
Feed extension	1600mm
Model of boom	K 40
Form of boom	Automatic leveling
Extension of drill boom	1800mm
Electric Hydraulic pump station
Electric motor	2×75kw
Impact- propelling-Boom	Variable axial piston pump
Turn around	Gear pumps
Filter precision	10μ
Hydraulic oil tank	400L
Hydraulic cooler	Water cooler
Working pressure	380V
Frequency	50Hz
Starting method	Star - triangle
Cable reel	1×CRC1016
Cable capacity of the reel	100m
Air and water system
Air Compressor	1×JN11
Capacity	1.55m3/min
Pressure	8bar
Device of shank lubrication	Electrical pulse lubrication pump
Air consumption for lubrication	2×0.3m3/min
Oil consumption for lubrication	2×180-250g/h
Water Pump	1×CR15
Power	11kw
Pump Capacity	12m3/h
Chassis
Diesel engine	Cummins QSB3.9-C125 92KW/2200rpm
Exhaust purification	Exhaust catalyst
Drive system	Hydraulic torque converter+gearbox
Travel brake	Wet bridge brake
Parking brake	Mechanical brake
Fuel tank	120L
