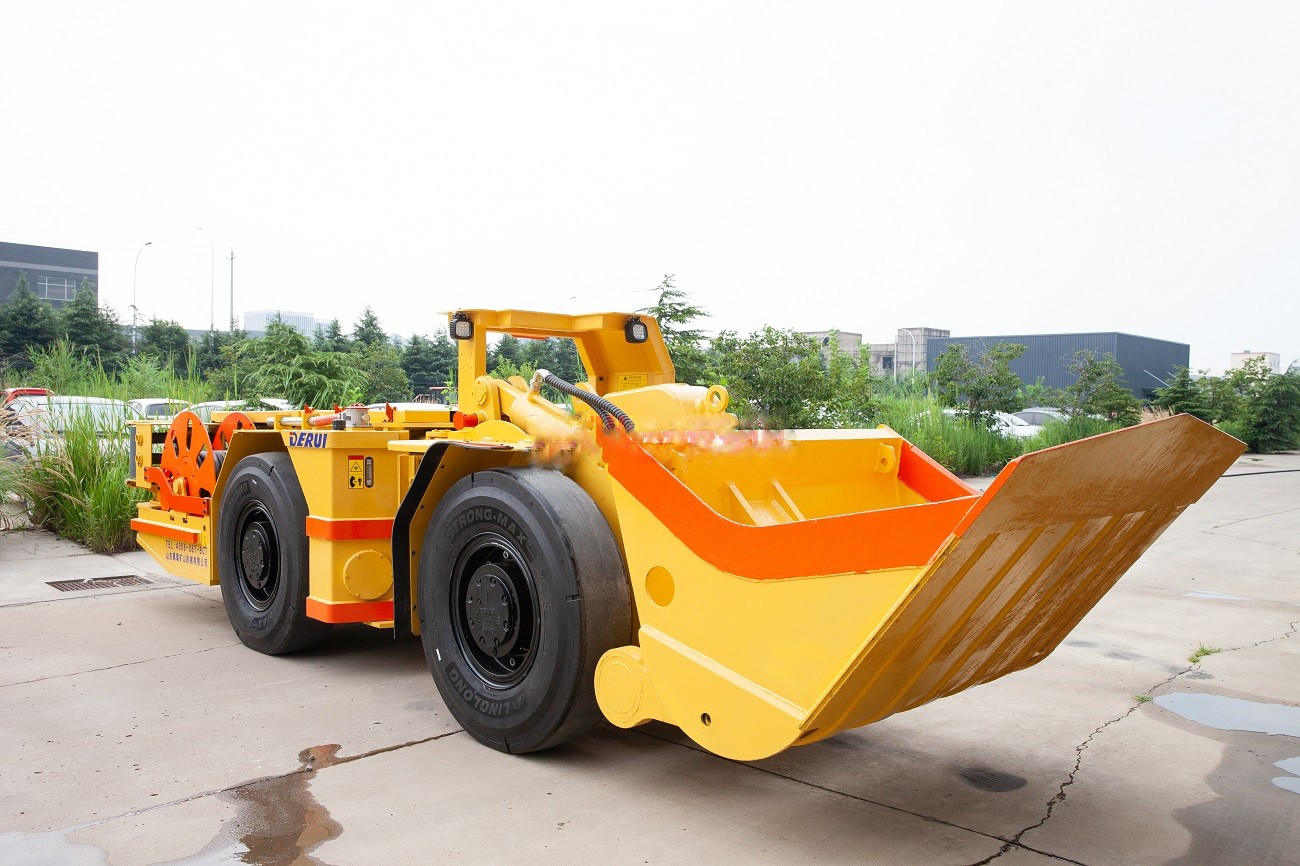

                WJD-2 Underground electric scraper

                As people pay more attention to environmental protection, the discharge requirements of underground scrapers are getting higher and higher. The application of the electric motor on the scraper realizes zero emission of exhaust gas and fundamentally solves the problem of exhaust gas emission. The automatic reeling system maintains the cable tension in an appropriate range and increases the service life of the cable. The extra-long cable design increases the working range of the electric scraper. The central hinged belt locking device makes the equipment more secure and reliable during maintenance.

                1. Detailed information

                Item

                         parameter

                bucket capacity

                           2m3

                rated  load

                            4t

                     max shovel force

                102KN

                     max traction force

                            104KN

                min unload distance

                            1024mm

                max unload height

                1785mm

                climb capacity(full load)

                             14°

                min turning radius

                Outside  4767mm

                inside   2461mm

                Max steering angle(left/right)

                            ±40°

                departure angle

                            15°

                walking speed(two way)

                            0-11.3Km/h

                motor model/power

                HM2-280S-4/75kw



                braking system



                Work and brake integrated, adopt spring brake. hydraulic realese brake

                Dimension(L*W*H)

                 7330*1775*2050mm

                Weight

                    14.2t
