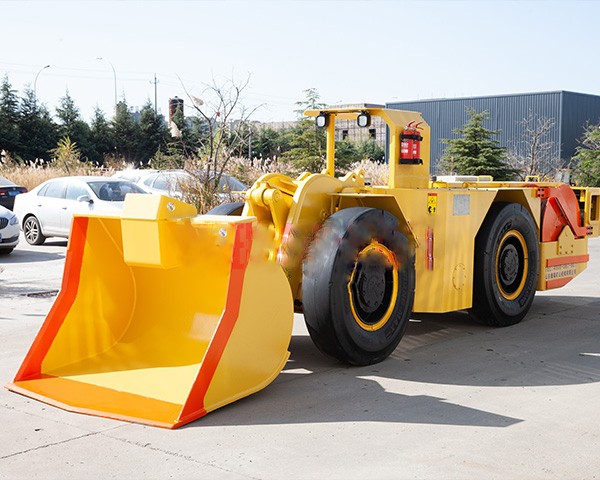

                WJD-1.5 Underground electric scraaper

                As people pay more attention to environmental protection, the discharge requirements of underground scrapers are getting higher and higher. The application of the electric motor on the scraper realizes zero emission of exhaust gas and fundamentally solves the problem of exhaust gas emission. The automatic reeling system maintains the cable tension in an appropriate range and increases the service life of the cable. The extra-long cable design increases the working range of the scraper. The central hinged belt locking device makes the equipment more secure and reliable during maintenance.

                1. Detailed information

                Item

                         parameter

                bucket capacity

                           1.5m3

                rated  load

                            3t

                     max shovel force

                72KN

                     max traction force

                            86KN

                min unload distance

                            1010±50mm

                max unload height

                1410±50mm

                climb capacity(full load)

                             16°

                min turning radius

                Outside  5000mm

                inside   2800mm

                Max steering angle(left/right)

                            ±40°

                departure angle

                            15°

                walking speed(two way)

                            0-9Km/h

                motor model/power

                Y280S-4/75kw



                braking system



                Work and brake integrated, adopt spring brake. hydraulic realese brake

                Dimension(L*W*H)

                 68800*1600*2050mm

                Weight

                    11t
