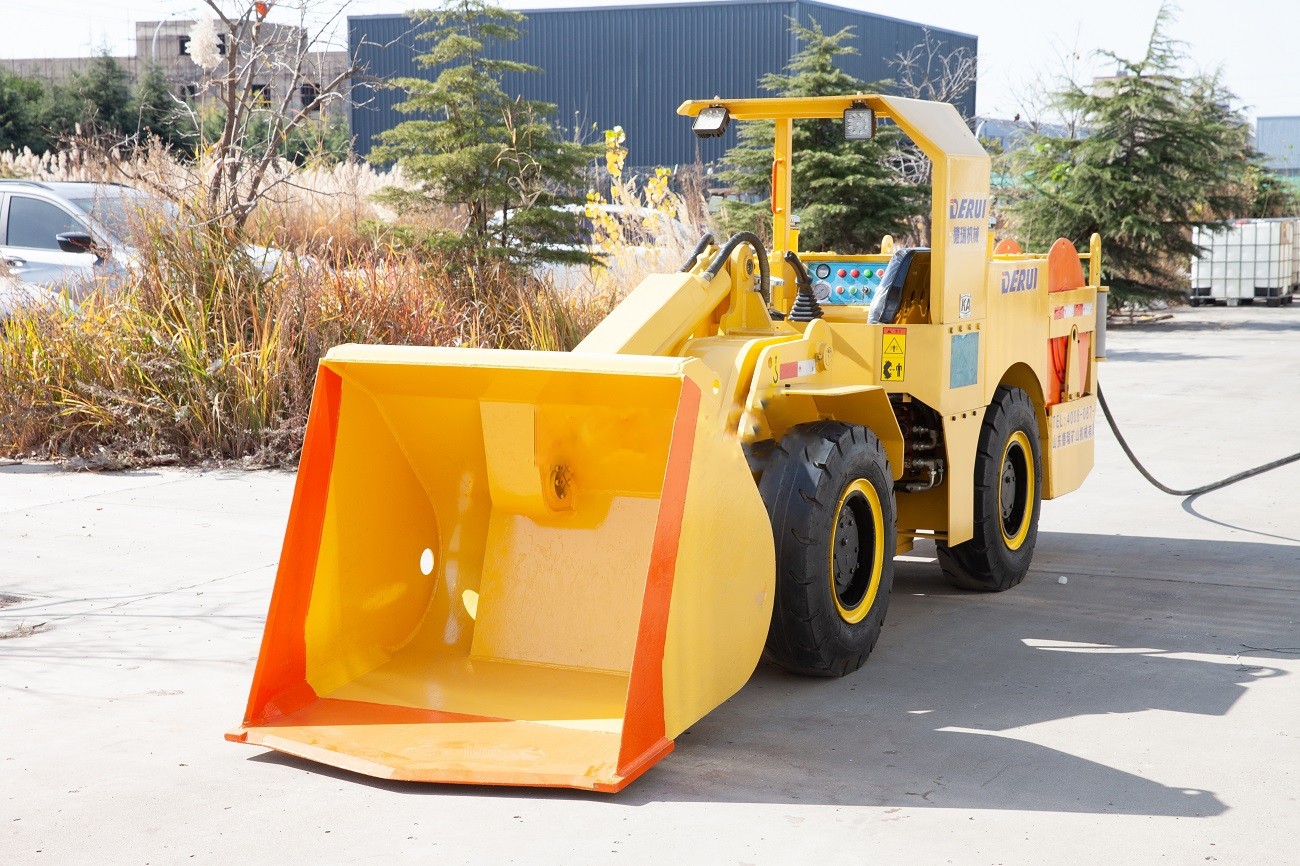

                WJD-0.6 Underground electric scraper

                As people pay more attention to environmental protection, the discharge requirements of underground scrapers are getting higher and higher. The application of the electric motor on the scraper realizes zero emission of exhaust gas and fundamentally solves the problem of exhaust gas emission. The automatic reeling system maintains the cable tension in an appropriate range and increases the service life of the cable. The extra-long cable design increases the working range of the scraper. The central hinged belt locking device makes the equipment more secure and reliable during maintenance.

                1. Detailed information

                Item

                         parameter

                bucket capacity

                           0.6m3

                rated  load

                            1.2t

                     max shovel force

                40KN

                     max traction force

                            38KN

                min unload distance

                            785mm

                max unload height

                1020mm

                climb capacity(full load)

                             16°

                min turning radius

                Outside  3445mm

                inside   1900mm

                Max steering angle(left/right)

                            38°

                departure angle

                            16°

                walking speed(two way)

                            0-7Km/h

                motor model/power

                HM2-2-225S-4/37kw



                braking system



                Work and brake integrated, adopt spring brake. hydraulic realese brake

                Dimension(L*W*H)

                 4750*1100*1840mm

                Weight

                    5.1t
