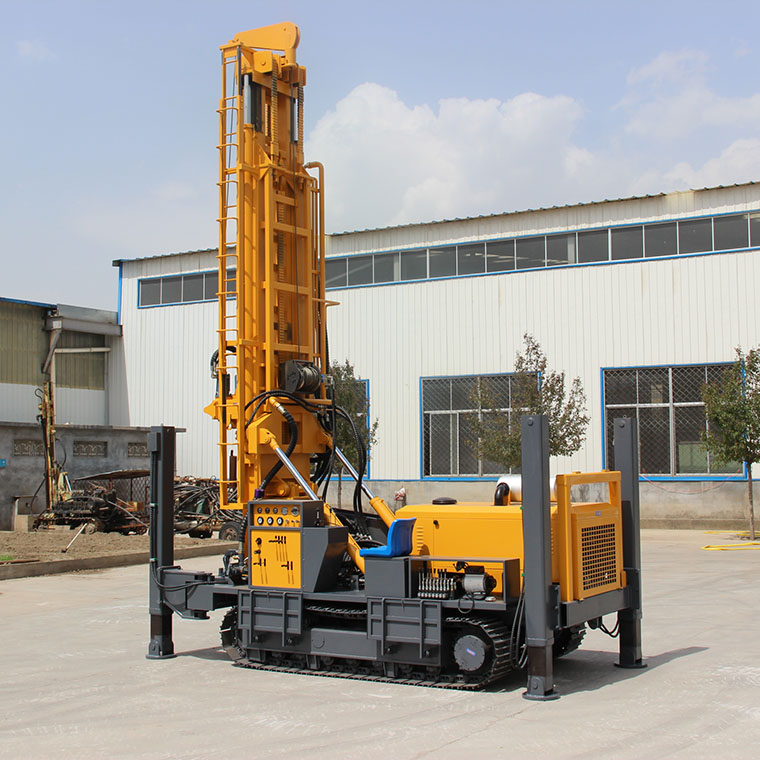

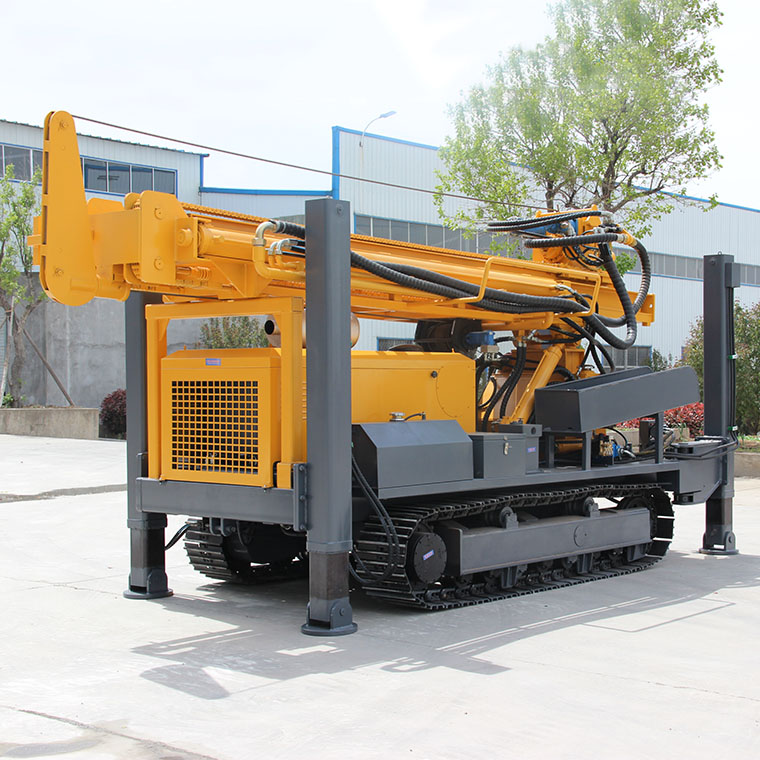

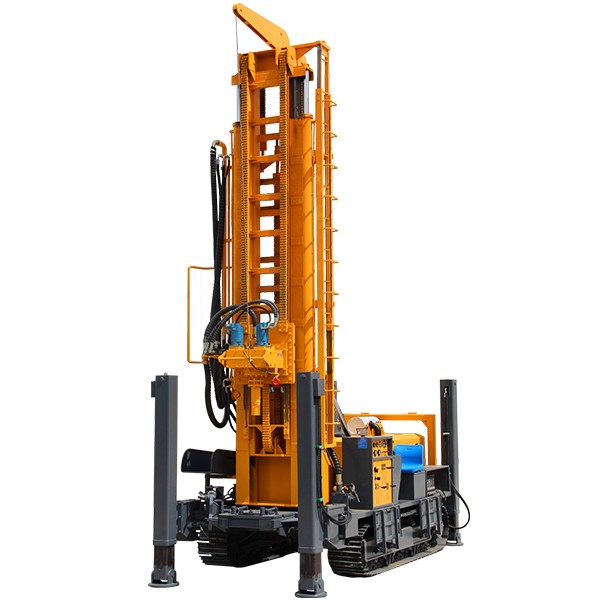

                FY680 Water Well Drilling Rig

                FY680 water well drilling rig Features: Water and gas dual-purpose crawler type 680 meters deep water drilling Features: 1. Equipped with 153KW Cummins brand six-cylinder turbocharged engine with strong power and long service life; 2. Patented design compound boom, double oil cylinder lift, strengthen the tower; 3. (Italy imported oil pump) 3 oil pumps, equipped with foam pump, winch, multi-function generator, front outrigger swing arm oil cylinder; 4. Each drilling rig is equipped with a baffle on the main arm to protect the oil cylinder; 5. The diameter of the hole is large, the hole is deep, and the advancing speed is fast.

                1. Detailed information

                FY680 water well drilling rig Features: Water and gas dual-purpose crawler type 680 meters deep water drilling Features:

                1. Equipped with 153KW Cummins brand six-cylinder turbocharged engine with strong power and long service life;

                2. Patented design compound boom, double oil cylinder lift, strengthen the tower;

                3. (Italy imported oil pump) 3 oil pumps, equipped with foam pump, winch, multi-function generator, front outrigger swing arm oil cylinder;

                4. Each drilling rig is equipped with a baffle on the main arm to protect the oil cylinder;

                5. The diameter of the hole is large, the hole is deep, and the advancing speed is fast.

                6. Drilling rig chassis: Reinforced steel crawler, large chassis, strong and durable, heavy bearing, wide chain plate, large tonnage.

                7. Parallel transmission design, sufficient power, reasonable distribution, unique hydraulic system design, simple maintenance and low cost.

                8. The independent heat dissipation dual system adopts hydraulic oil temperature cooling and is equipped with traditional air cooling. long engine life.

                9. Dual system: 1. Air power system with air compressor 2. Mud pump system with mud pump

                FY 680 crawler water well drilling rig

                The weight(T)

                13

                Drill pipe diameter(mm)

                Φ102  Φ108 Φ114

                The hole diameter(mm)

                140-400

                Drill pipe length(m)

                1.5m  2.0m  3.0m  6.0m

                Drilling depth(m)

                680

                Rig lifting force(T)

                30

                One-time advance length(m)

                6.6

                Rapid rise speed(m/min)

                20

                Walking speed(km/h)

                2.5

                Fast feeding speed(m/min)

                40

                Climbing angles(Max.)

                30

                Width of loading(m)

                2.95

                Equipped capacitor(kw)

                153

                Hoisting force of winch(T)

                2

                Using air pressure(MPA)

                1.7-3.5

                Swing torque(N.m)

                8850-13150

                Air consumption(m3/min)

                17-42

                Dimension(mm)

                6300×2300×2650

                Swing speed(rpm)

                45-140

                Equipped with hammer

                Medium and high wind pressure series

                The penetration efficiency(m/h)

                15-35

                High leg stroke(m)

                1.7

                The engine brand

                Cummins engine
