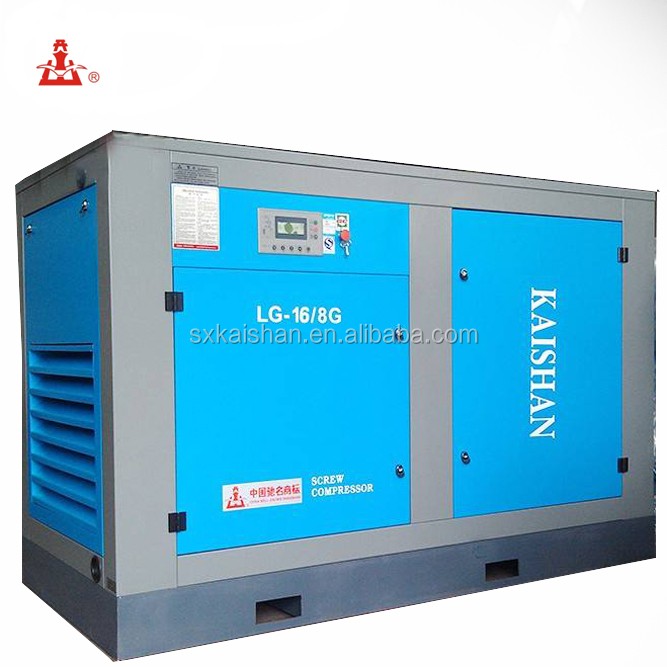

Kaishan LG electric air compressor motor

Kaishan LG electric air compressor motor

LG air compressor is most economic air compressor package, but with the benefits of heavy duty working design, low maintenance cost and internal components easy exchangeable. it is flexible for air cooled and water cooled. LG series has belt driving type (7.5 – 75kw) and direct driving model (18.5 – 355kw), working pressure from 7.5 to 13 bar(g), Free Air Delivery from 0.8 – 66 m3/min.

Detailed information

Overview

Quick Details

Condition:
New

Type:
Screw

Configuration:
Stationary

Power Source:
AC POWER

Lubrication Style:
OIL-LESS

Mute:
Yes

Place of Origin:
Zhejiang, China

Brand Name:
KAISHAN

Model Number:
LG13/0.8Kaishan LG electric air compressor motor AC

Voltage:
380V

Dimension(L*W*H):
varied

Weight:
340-7400KG, 340-7400kg

Warranty:
2Year

After-sales Service Provided:
Overseas third-party support available

Certification:
ISO.CE

Name:
Kaishan LG electric air compressor motor AC

Capacity:
0.8-66m3/min

pressure:
8-13bar

Engine:
electricity

useage:
Kaishan LG electric air compressor motor AC

power:
7.5-355kw

Model:
LG

Delivery:
15days

control:
operated automatically

Supply Ability

Supply Ability
3000 Set/Sets per Month Kaishan LG electric air compressor motor AC

Packaging & Delivery

Packaging Details

1.Bulk packing with plastic bags.
2. Wooden case.
Belt Driven Dry screw air compressor ,Kaishan LG series screw air compressor

Port

Shanghai, NingBo

Lead Time:
7-10days

Please select the right style, send me the email, I will confirm you soon.

Technological parameters of Kaishan LG electric air compressor motor,stationary screw air compressor Industrial,ac motor capacitor for air compressor

Model No.	Capacity	Working pressure	Electrical power	Connector	Weight	Diemension
Model No.	m3/min	MPa	kw		kgs	mm
LG-1.2/8	1.2	0.8	7.5	G1	350	9007001040
LG-1.0/10	1.0	1.0
LG-0.8/13	0.8	1.3
LG-1.7/7	1.7	0.7	11	G1	500	10608001230
LG-1.7/8	1.7	0.8
LG-1.5/10	1.5	1.0
LG-1.2/13	1.2	1.3
LG-2.4/7	2.4	0.7	15	G1	550	10608001230
LG-2.4/8	2.4	0.8
LG-2.2/10	2.2	1.0
LG-1.7/13	1.8	1.3
LG-3/8G	3.0	0.8	18.5	G1	600	14208501110
LG-3/7	3.0	0.7			650	10808801415
LG-3/8	3.0	0.8
LG-2.7/10	2.7	1.0
LG-2.3/13	2.3	1.3
LG-3.6/8G	3.6	0.8	22	G1	650	14208501110
LG-3.6/7	3.6	0.7			700	10808801415
LG-3.6/8	3.6	0.8
LG-3.2/10	3.2	1.0
LG-2.7/13	2.7	1.3
LG-5.2/7	5.2	0.7	30	G1?	1000	130011001650
LG-5/8	5.0	0.8
LG-4.5/10	4.5	1.0
LG-3.7/13	3.7	1.3
LG-6.5/7G	6.5	0.7	37	G1?	1050	16009701205
LG-6.5/7	6.5	0.7				16009701205
LG-6.2/8	6.2	0.8				16309101220
LG-5.6/10	5.6	1.0				130011001650
LG-4.8/13	4.8	1.3
LG-6.0/8	6.0	0.8
LGB-5.6/10	5.6	1.0
LGB-4.8/13	4.8	1.3
LG-7.4/7G	7.4	0.7	45.0	G1?	1150	177810001300
LG-7.4/7	7.4	0.7				130011001660
LG-7.1/8	7.1	0.8
LG-6.5/10	6.5	1.0
LG-5.6/13	5.6	1.3
LG-7.5/8	7.5	0.8
LG-6.9/10	6.9	1.0
LG-6/13	6.0	1.3
LG-10.5/7G	10.5	0.7	55	G1?	1500	195011601550
LG-10/8G	10.0	0.8				195011601550
LG-8.7/10	8.7	1.0				162012301670
LG-7.5/13	7.5	1.3				162012301670
LG-10/8	10	0.8				150012501566
LG-8.5/10	8.5	1				150012501566
LG-13/8G	13	0.8	75	G2	1900	244011601620
LG-10/10G	10	1
LG-12/10G	12	1
LG-10/13	10	1.3				158013201646
LG-13/8	13	0.8
LG-14.5/7	14.5	0.7
LG-12/10	12	1.2
LG-16/8G	16	0.8	90	G2	2100	265013001620
LG-16.5/7G	16.5	0.7
LG-14/10G	14	1
LG-14.5/10	14.5	1
LG-12/13G	12	1.3
LG-20/7G	20	0.7	110	DN65	3000	276013401710
LG-20/8G	20	0.8
LG-16/10G	16	1
1G-13/13G	13	1.3
LG-20/8	20	0.8			2400
LG-17/10	17	1
LG-15/13	15	1.3
LG-24/8	24	0.8	132	DN65	3050	276013401710
LG-22/8G	22	0.8
LG-20/10G	20	1
LG-16/13G	16	1.3
LG-28/7G	28	0.7	160	DN65	3600	286015101810
LG-27/8G	27	0.8
LG-23/10G	23	1
LG-25/10	25	1
LG-20/13G	20	1.3
LG-30/8G	30	0.8	185	DN65	4500	340021002100
LG-21/13G	21	1.3	185	DN65	3700	286015101810
LG-35/8G	35	0.8	200	DN80	4500	340021002100
LG-30/10G	30	1
LG-27/13G	27	1.3
LG-44/8	44	0.8	220	DN100	4800	370022212050
LG-46/8G	46	0.8	250	DN100	6000	370022002200
LG-38/10G	38	1			6200	390022002200
LG-33/13G	33	1.3			5800	370022002200
